The Leaching Agitation Tank manufactured by Zhengzhou Zhenggang Machinery Co., Ltd. is a professional mixing and leaching machine used for gold ore cyanidation, precious metal leaching, hydrometallurgy processing, chemical slurry mixing, flotation pulp conditioning, and reagent preparation. It is designed to ensure complete contact between ore particles and chemical reagents, improving reaction efficiency and supporting higher leaching recovery rates in mineral processing plants.
This leaching tank uses a motor, reducer, shaft, impeller, tank body, and internal baffles to create strong mechanical agitation. During operation, the impeller rotates at high speed, keeping solid particles suspended and evenly distributing reagents throughout the slurry. The tank body can be made of carbon steel, stainless steel, or rubber-lined material according to the process medium, making it suitable for cyanide leaching, acidic leaching, alkaline leaching, flotation conditioning, lime mixing, and industrial slurry preparation. With high mixing intensity, stable operation, flexible configuration, and easy maintenance, the Leaching Agitation Tank is widely used in gold leaching plants, copper-zinc hydrometallurgy lines, ore beneficiation plants, chemical plants, and continuous multi-tank leaching systems.
Strong mechanical agitation increases contact between ore particles and reagents, improving chemical reaction efficiency and mineral leaching recovery.
The optimized impeller and baffle structure prevent solid settlement and keep ore slurry concentration uniform during continuous operation.
The tank is widely used in gold ore cyanidation systems, helping improve gold dissolution and leaching performance.
Carbon steel, stainless steel, rubber-lined, or wear-resistant tank designs can be selected according to slurry abrasiveness and chemical corrosion conditions.
The optimized impeller structure maintains strong mixing performance while reducing unnecessary power consumption.
Simple structure, accessible tank design, replaceable liners, and reliable transmission system make inspection, cleaning, and maintenance convenient.

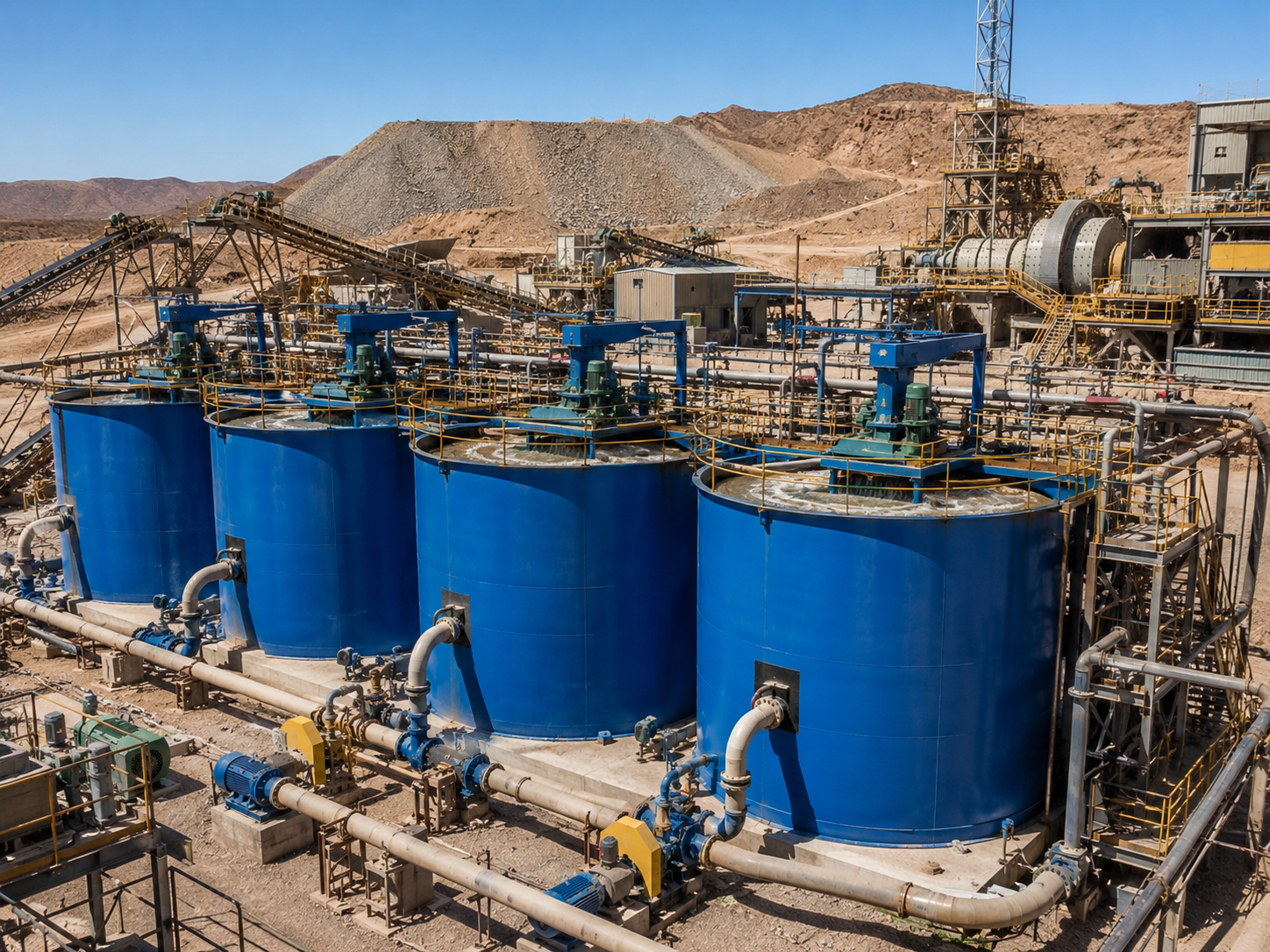

Used in gold ore processing plants for cyanide leaching, helping improve contact between gold particles and leaching reagents to support higher gold recovery.

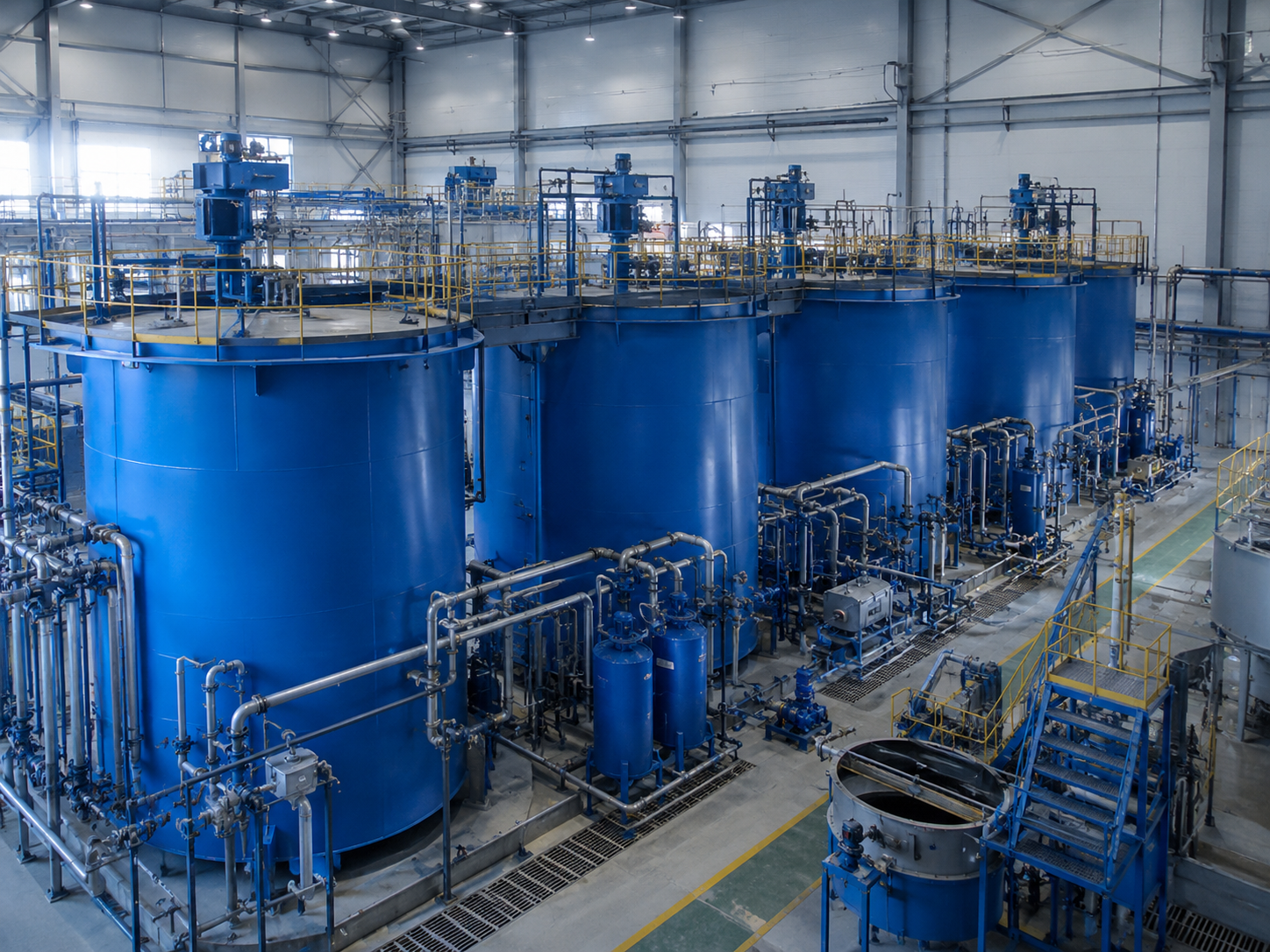

Suitable for precious metal leaching systems where uniform slurry mixing and stable chemical reaction conditions are required.

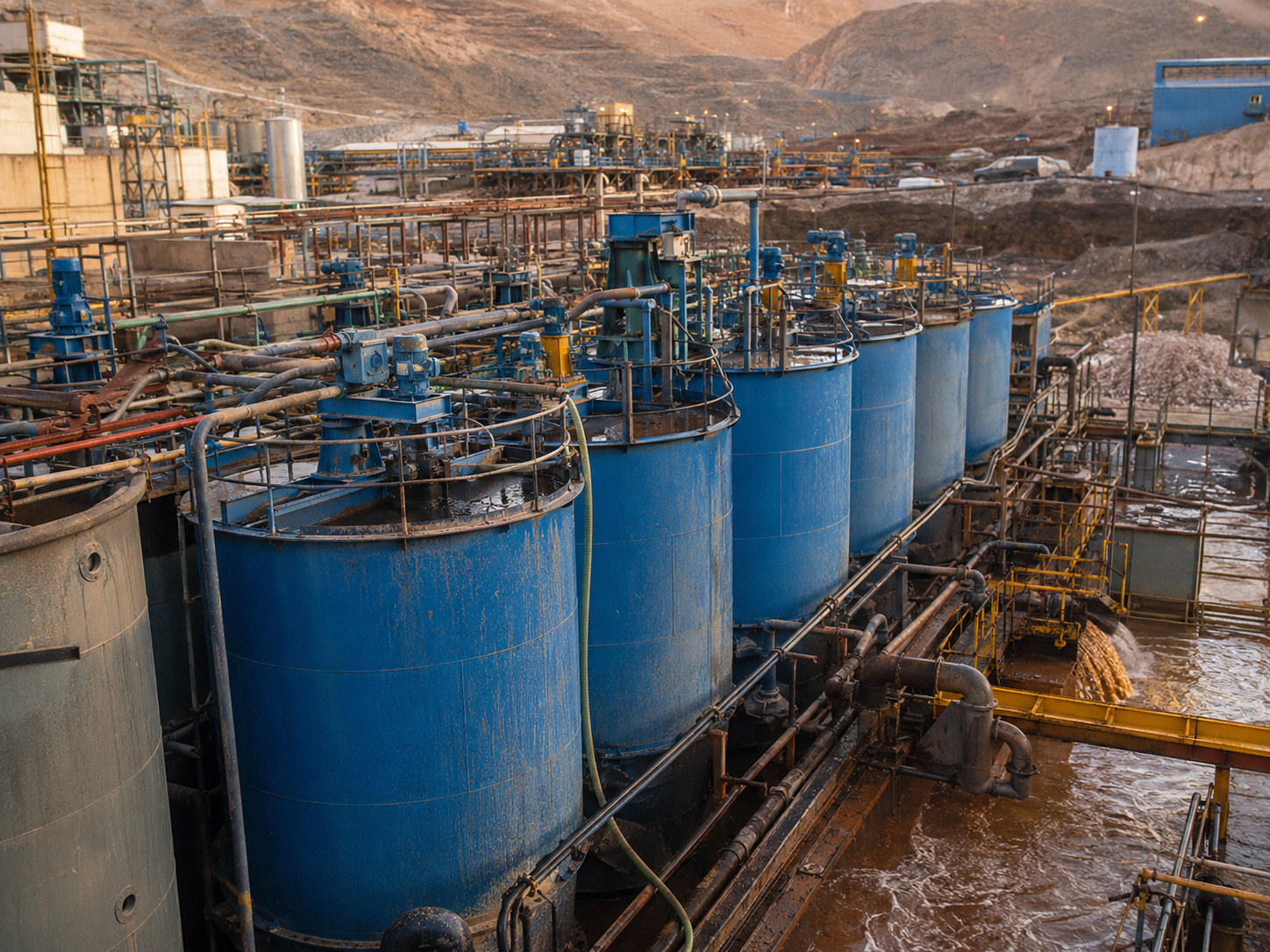

Applied in hydrometallurgy plants for oxidation leaching of copper, zinc, and other non-ferrous metal ore slurries.

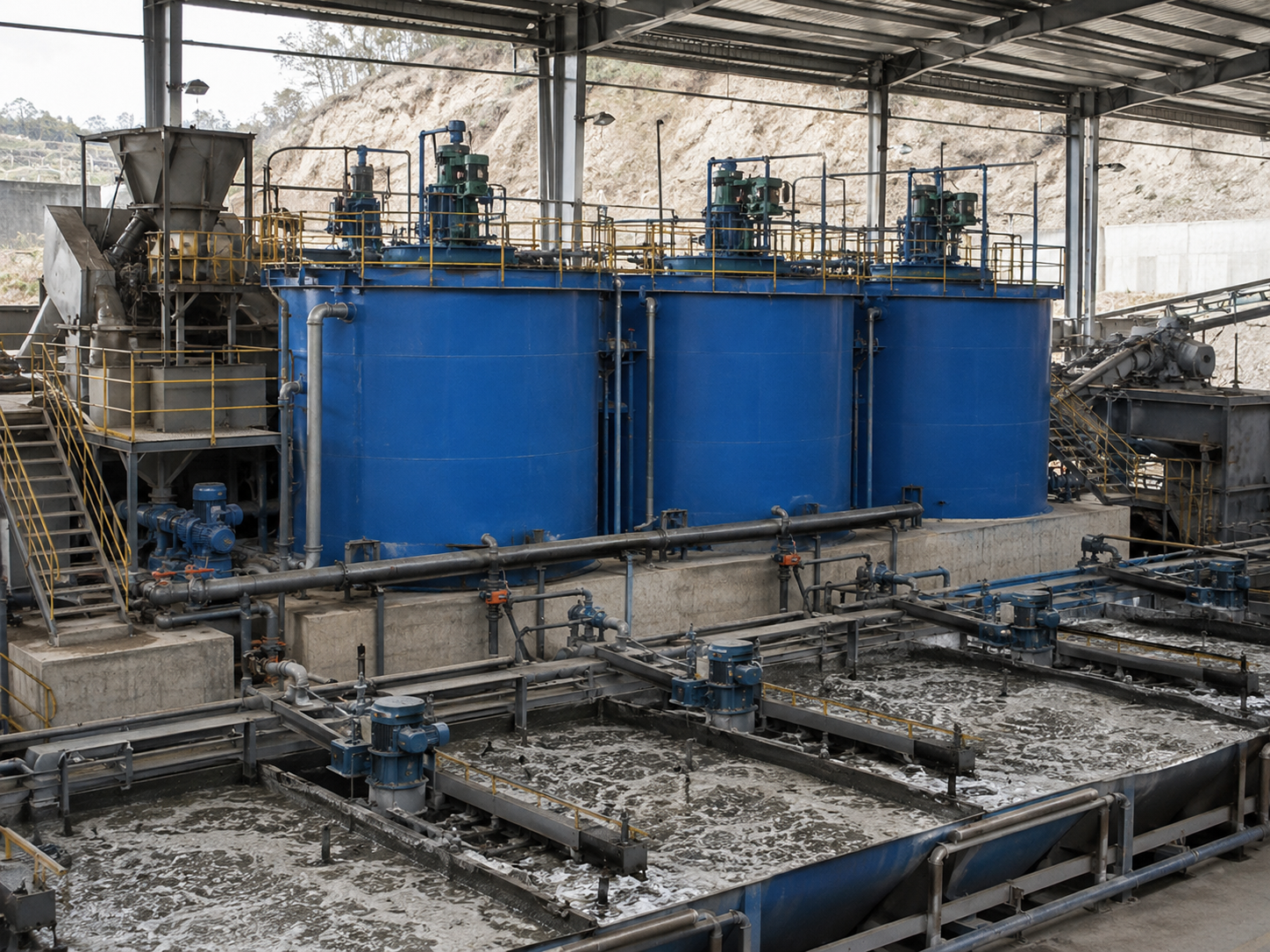

Used before flotation to mix reagents with mineral pulp evenly, ensuring stable pulp concentration and better flotation performance.

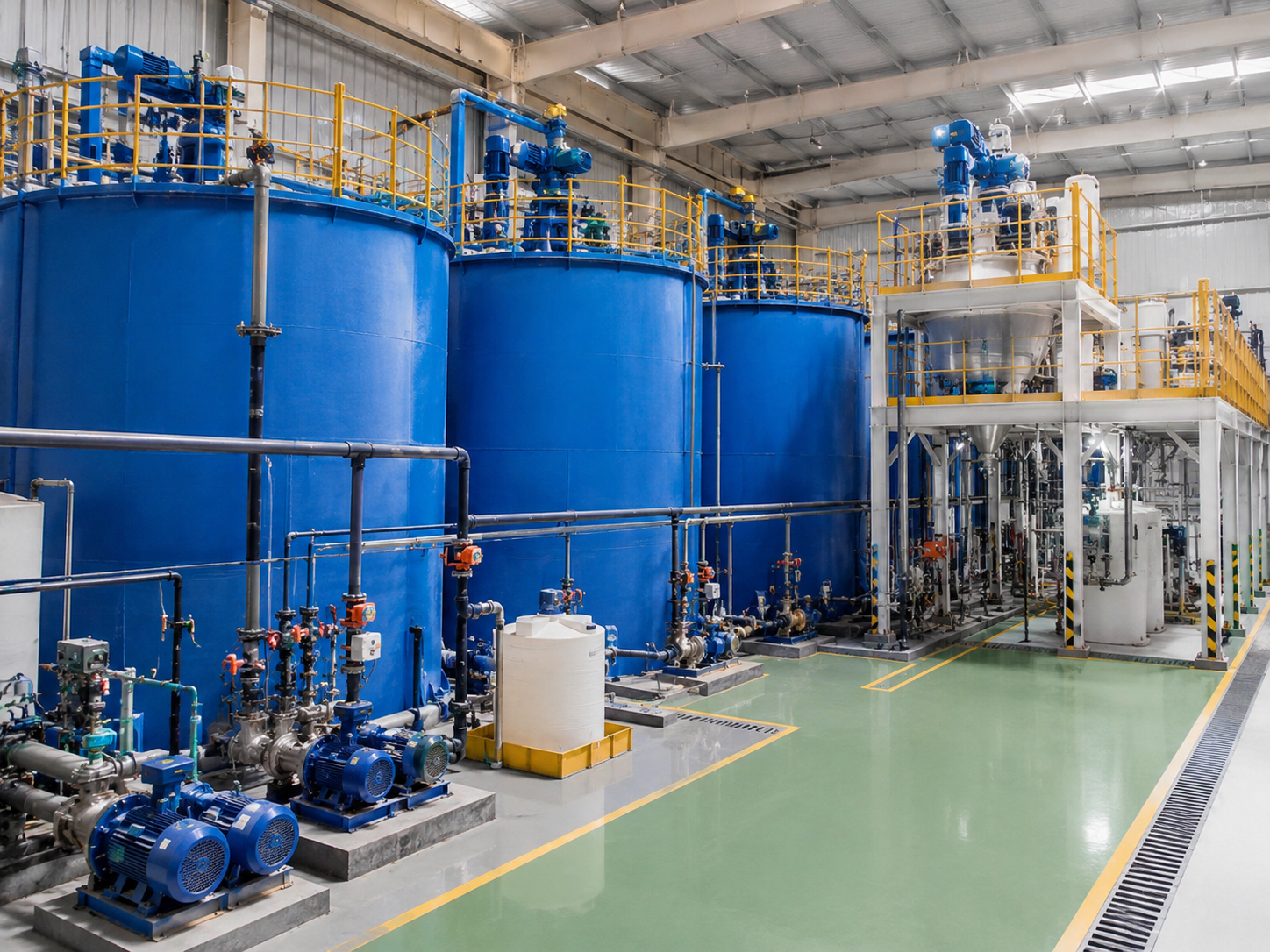

Suitable for preparing lime slurry, chemical reagents, flotation pulp, mineral slurry, and building material slurry in industrial production lines.

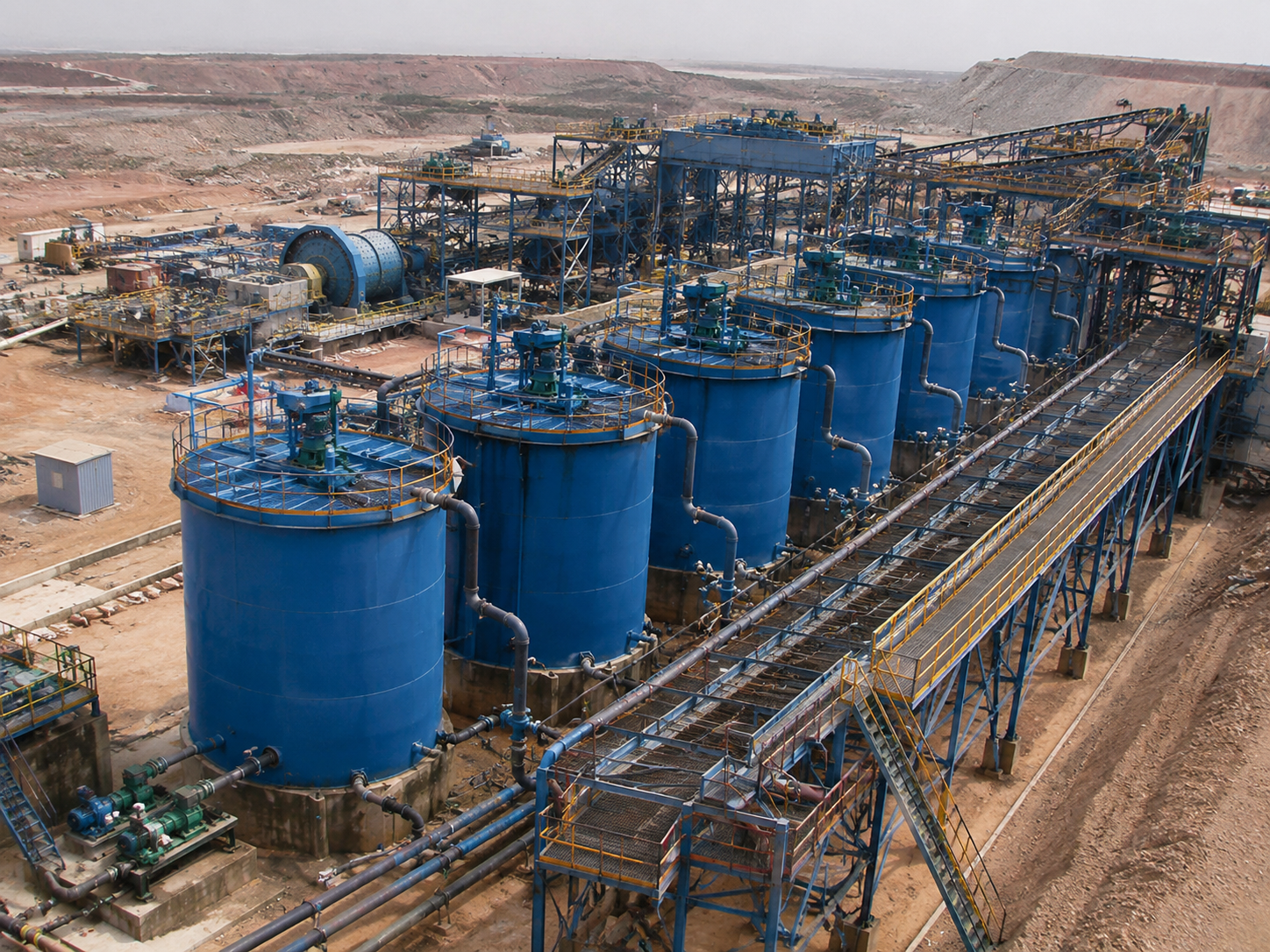

Can be arranged in series for continuous leaching operations in gold beneficiation plants, hydrometallurgy systems, and chemical processing lines.
| Product Name | Leaching Agitation Tank |
| Equipment Type | Mixing and leaching agitation tank |
| Category | Mixing and Agitation Equipment |
| Effective Volume | 0.26–35 m³ |
| Motor Power | 1.5–30 kW |
| Tank Diameter | 750–5000 mm |
| Tank Height | 750–5000 mm |
| Impeller Diameter | 250–1500 mm |
| Rotation Speed | 390–530 r/min |
| Mixing Type | Mechanical agitation |
| Tank Structure | Cylindrical tank with conical bottom |
| Tank Material Options | Carbon steel / stainless steel / rubber-lined tank |
| Main Components | Tank body, impeller, shaft, bearing assembly, baffles, support structure, motor, transmission system |
| Optional Configuration | Air injection pipe, aeration system, heating coil, speed control, rubber lining |
| Applicable Materials | Gold ore slurry, precious metal slurry, copper-zinc ore slurry, lime slurry, reagents, flotation pulp, chemical slurry |
| Application Industries | Gold processing, mineral beneficiation, hydrometallurgy, chemical processing, building materials, flotation preparation |
| Model | Tank Diameter (mm) | Tank Height (mm) | Impeller Diameter (mm) | Rotation Speed (r/min) | Effective Volume (m³) | Motor Power (kW) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| Φ750×750 | 750 | 750 | 250 | 530 | 0.26 | 1.5 | 260 |
| Φ1000×1000 | 1000 | 1000 | 320 | 530 | 0.58 | 2.2 | 400 |
| Φ1200×1200 | 1200 | 1200 | 400 | 500 | 1.0 | 4.0 | 630 |
| Φ1500×1500 | 1500 | 1500 | 500 | 500 | 1.6 | 5.5 | 960 |
| Φ2000×2000 | 2000 | 2000 | 650 | 500 | 3.5 | 7.5 | 1350 |
| Φ2500×2500 | 2500 | 2500 | 850 | 480 | 6.8 | 11 | 1900 |
| Φ3000×3000 | 3000 | 3000 | 950 | 450 | 11.0 | 15 | 2600 |
| Φ3500×3500 | 3500 | 3500 | 1050 | 430 | 15.0 | 18.5 | 3200 |
| Φ4000×4000 | 4000 | 4000 | 1250 | 410 | 22.0 | 22 | 4200 |
| Φ5000×5000 | 5000 | 5000 | 1500 | 390 | 35.0 | 30 | 5500 |
Get detailed flow diagrams, equipment specifications, and design guidelines
The Leaching Agitation Tank is used for gold cyanidation leaching, precious metal ore leaching, copper-zinc oxidation leaching, slurry mixing, reagent preparation, flotation pulp conditioning, and hydrometallurgy processing.
Gold Leaching Plant • Uzbekistan
The Leaching Agitation Tank works reliably in our gold cyanidation line. It keeps the slurry well suspended, distributes reagents evenly, and helps maintain stable leaching conditions. The tank structure is strong, and daily inspection and maintenance are convenient for our plant operators.
